International Advanced Automated Parking System for Auto

Basic Info

Model No.: PPY

Brand: Fengye

Place Of Origin: China

Dimensions Of Cars: 5300mmx1950mmx2050mm

Drive Mode: Motor-driven

Power Supply: 3 phase 5 line

Surface Treatment: Hot dip galvanizing

Operating Mode: Swipe card or Touch screen

Control Method: PLC

Load Capacity: 2000kg-2500kg

Additional Info

Productivity: 50000 parking spaces/year

Transportation: Ocean,Land

Place of Origin: Jiangsu,China

Supply Ability: 50000 parking spaces/year

Certificate: ISO9001/GBT33000

HS Code: 84289020

Port: Shangha,Tianjin,Lianyungang

Product Description

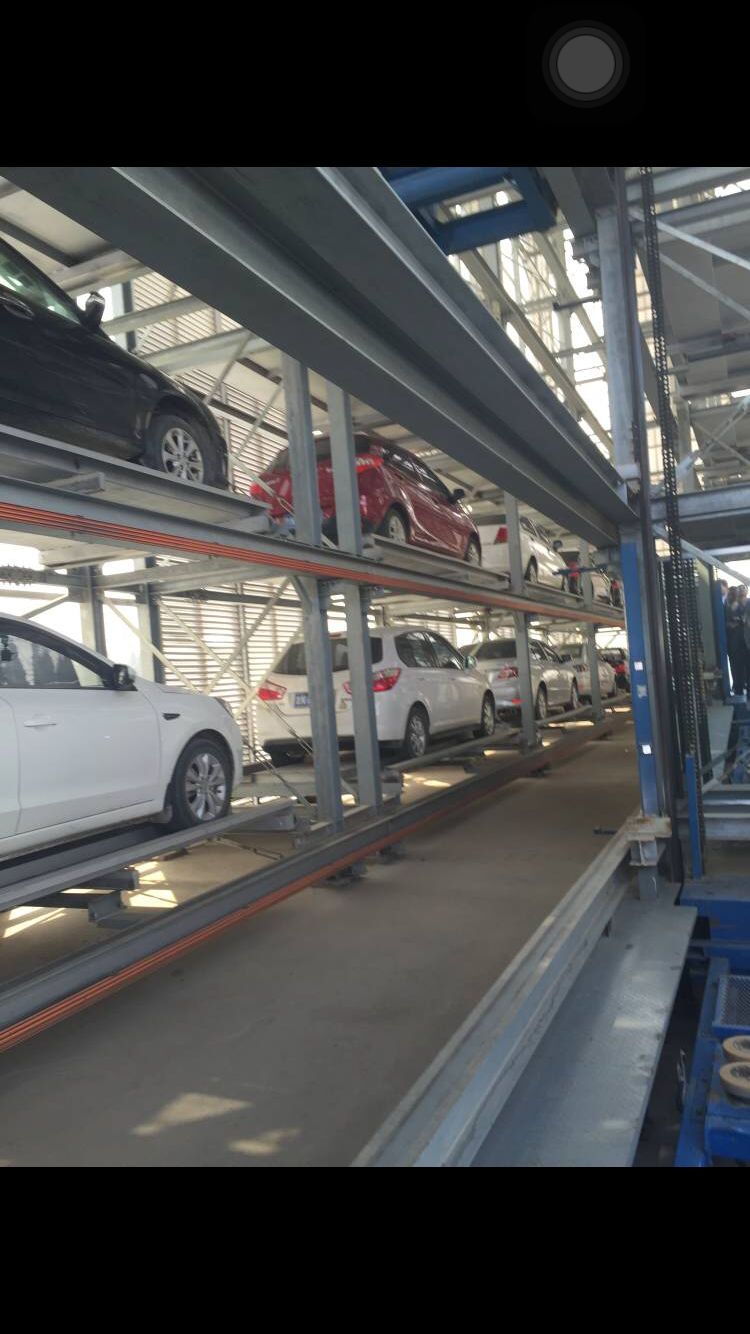

This Automatic Parking system is an advanced parking solution with fully automated operation design, which can reduce the driver's operation, alleviate parking congestion problems, and optimize the parking process.

This type of Mechanical Parking Equipment adopts the technology of no platform handover, with high parking density, safety, reliability, high degree of automation, and high efficiency of vehicle access. It has an automatic centering device that can rotate during operation. It is mainly divided into single-layer horizontal movement and single-layer (or multi-layer) horizontal movement, suitable for building above ground, underground, or a combination of above ground and underground three-dimensional garages. It is mainly used in large garages or parking lots.

The composition of the fully automatic intelligent three-dimensional Parking System for planar movement is mainly composed of elevators, horizontal trolleys, comb type conveyors, storage frames, detection devices, and intelligent frequency conversion control systems. According to the on-site situation, a turntable can also be set up to automatically turn the vehicle around.

Garage operation principle: The movement of vehicles within the same level is completed by the handling trolley, and the up and down lifting actions of the vehicles are completed by the elevator car. Through the cooperation of the two, the process of accessing vehicles is achieved.
