Five Layer Lifting and Traversing Car Parking System

Basic Info

Model No.: PSH-5

Brand: Fengye

Place Of Origin: China

Drive Mode: Motor

Dimensions Of Cars: 5300mmx1950mmx2050mm

Power Supply: 3 phase 5 line

Surface Treatment: Hot dip galvanizing

Operating Mode: Swipe card or Touch screen

Control Method: PLC

Load Capacity: 2000kg-2350kg

Additional Info

Productivity: 50000 parking spaces/year

Transportation: Ocean,Land

Place of Origin: Jiangsu,China

Supply Ability: 50000 parking spaces/year

Certificate: ISO9001/GBT33000

HS Code: 84289020

Port: Shanghai,Tianjin,Lianyungang

Product Description

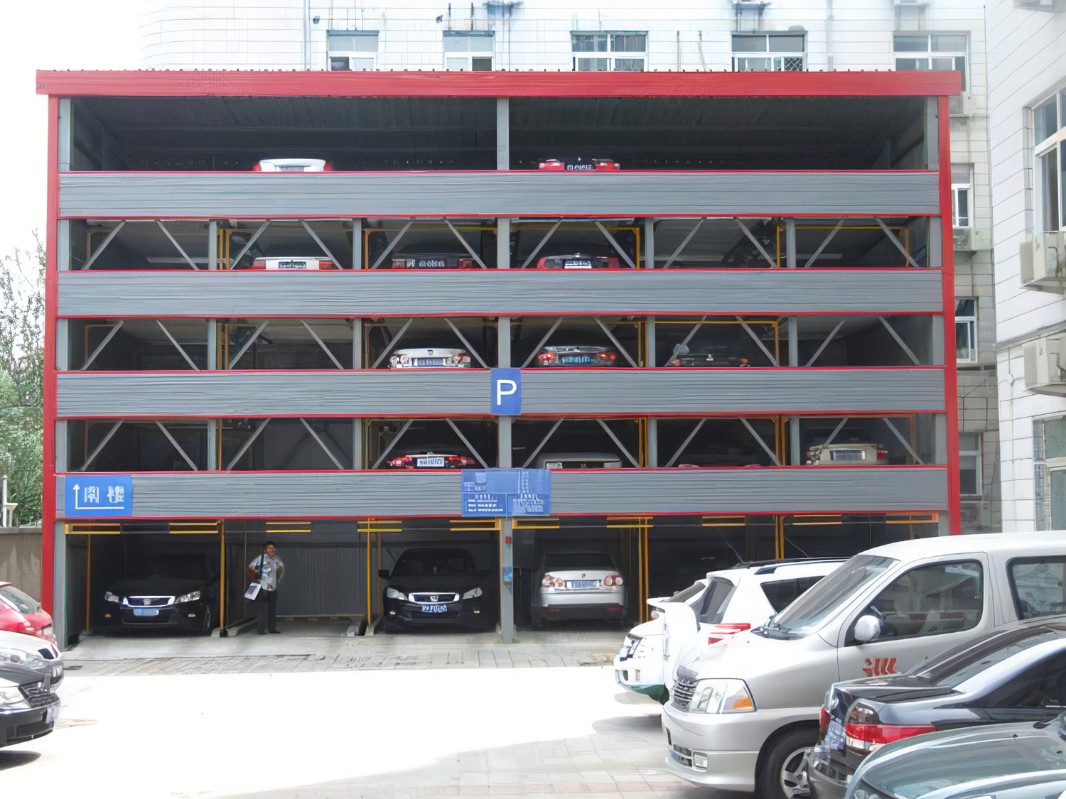

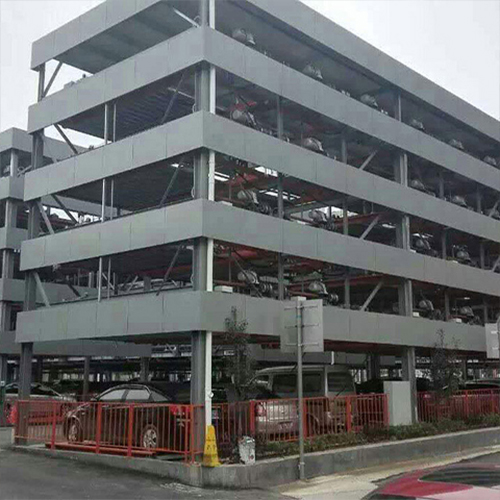

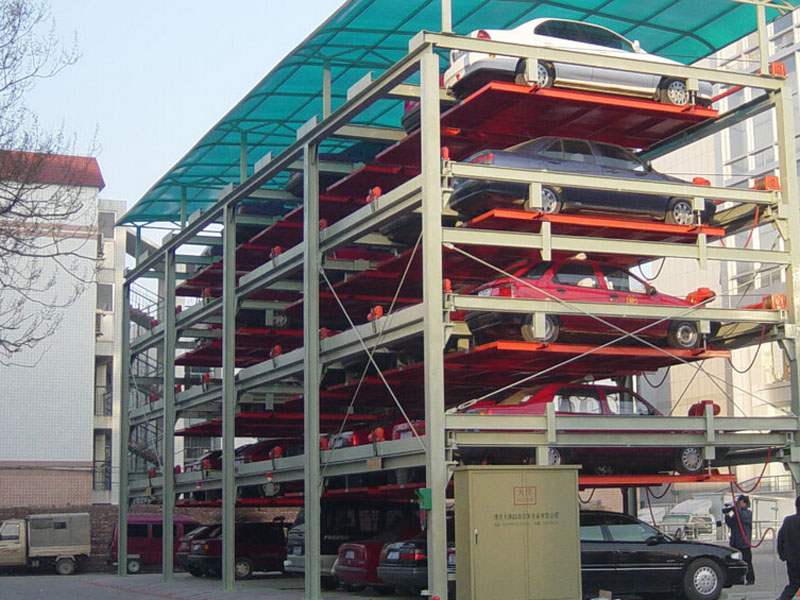

Five Layer Lifting and Traversing Car Parking System is one kind of Puzzle Parking system that can realize multi level parking and traversing of cars. By means of vertical lift and lateral movement, the system superimposes parking Spaces layer upon layer to achieve efficient parking management.

Operation principle:

Car entrance and exit in the ground layer, the highest layer of

the parking board only to do lifting movement, the bottom

layer of the parking board only to do traverse movement, the

middle layer can do both lifting and traverse movement. The

lower four layers are equipped with empty space, the parking

board changes the empty space by traverse, lowering the car above the empty space, and the car at

the bottom can be taken out without movement.

Features:

1. wire rope lifting, smooth transmission and low noise.

2. Lower level vehicles can be parked according to customer requirements for ultra-high vehicles.

3. multiple safety protection devices, simple structure, easy to use and maintain equipment.

4. applicable to the ground plane space.

5. The garage's peripheral decoration is beautiful and generous, and at the same time it has the functions of rain and sun protection.

The application scenarios of the five Layer Lifting and Traversing Car Parking System

This type of Mechanical Parking Equipment is mainly used in cities, commercial buildings, residential communities, hotels, shopping malls, high-speed rail stations, airports, hospitals, schools and other places, can be a good solution to the problem of parking shortage, improve the efficiency and convenience of parking.
