9-story vertical circulation garage

Basic Info

Model No.: PCX-9

Brand: Fengye

Place Of Origin: China

Dimensions Of Cars: 5300mmx1950mmx2050mm

Power Supply: 3 phase 5 line

Surface Treatment: Hot dip galvanizing

Operating Mode: Swipe card or Touch screen

Control Method: PLC

Load Capacity: 2000kg-2500kg

Drive Mode: Motor + chain

Additional Info

Productivity: 50000 parking spaces/year

Transportation: Ocean,Land

Place of Origin: Jiangsu,China

Supply Ability: 50000 parking spaces/year

Certificate: ISO9001/GBT33000

HS Code: 84289020

Port: Shanghai,Tianjin,Lianyungang

Product Description

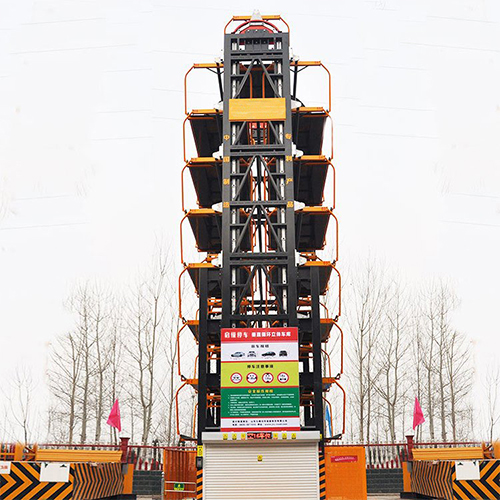

The vertical circular mechanical parking garage is also known as the ferris wheel three-dimensional garage due to its similar appearance and operation mode to the ferris wheel. This device has a relatively high utilization rate in the market, especially for areas with limited space.

Main composition structure of the Parking System: It mainly consists of five parts: steel structure, carrier plate, transmission system, control system, and safety protection device. The safety protection devices mainly include: emergency stop quick closing, vehicle over length and over height detection device, blocking device, human and vehicle accidental entry detection device, and warning device. Ensure the safety of equipment operation!

The operating principle of the rotary parking system

Vertical circulation type Mechanical Parking Equipment is a parking device that uses a circular motion perpendicular to the ground to access vehicles. Its working principle is to drive the transmission mechanism through a reducer, and install a storage frame at regular intervals on the traction component chain. The storage frame moves in a circular motion with the chain to achieve the purpose of accessing vehicles.
