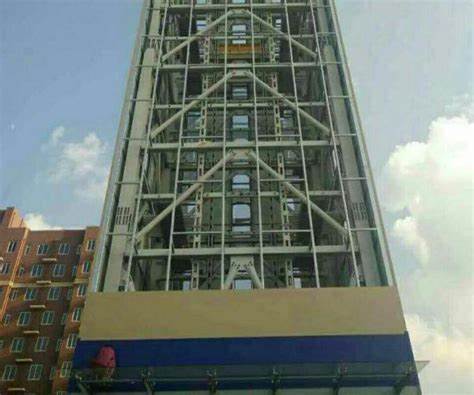

10 story vertical lift tower parking

Basic Info

Model No.: PCS-10

Brand: Fengye

Place Of Origin: China

Dimensions Of Cars: 5300mmx1950mmx2050mm

Power Supply: 3 phase 5 line

Surface Treatment: Hot dip galvanizing

Operating Mode: Swipe card or Touch screen

Control Method: PLC

Load Capacity: 2000kg-2500kg

Drive Mode: Motor + chain

Additional Info

Productivity: 50000 parking spaces/year

Transportation: Ocean,Land

Place of Origin: Jiangsu,China

Supply Ability: 50000 parking spaces/year

Certificate: ISO9001/GBT33000

HS Code: 84289020

Port: Shanghai,Tianjin,Lianyungang

Product Description

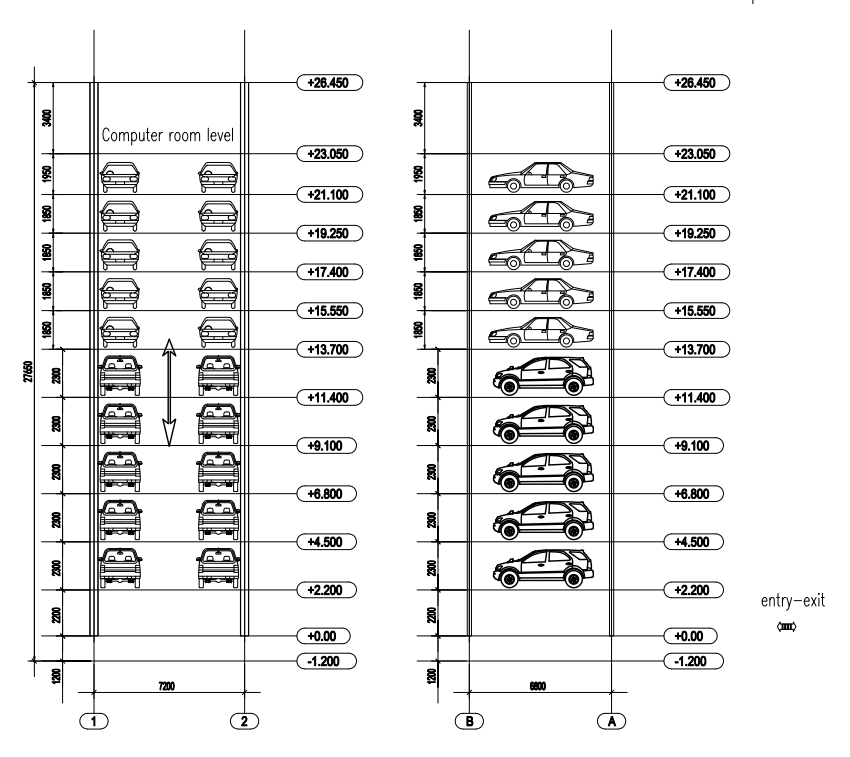

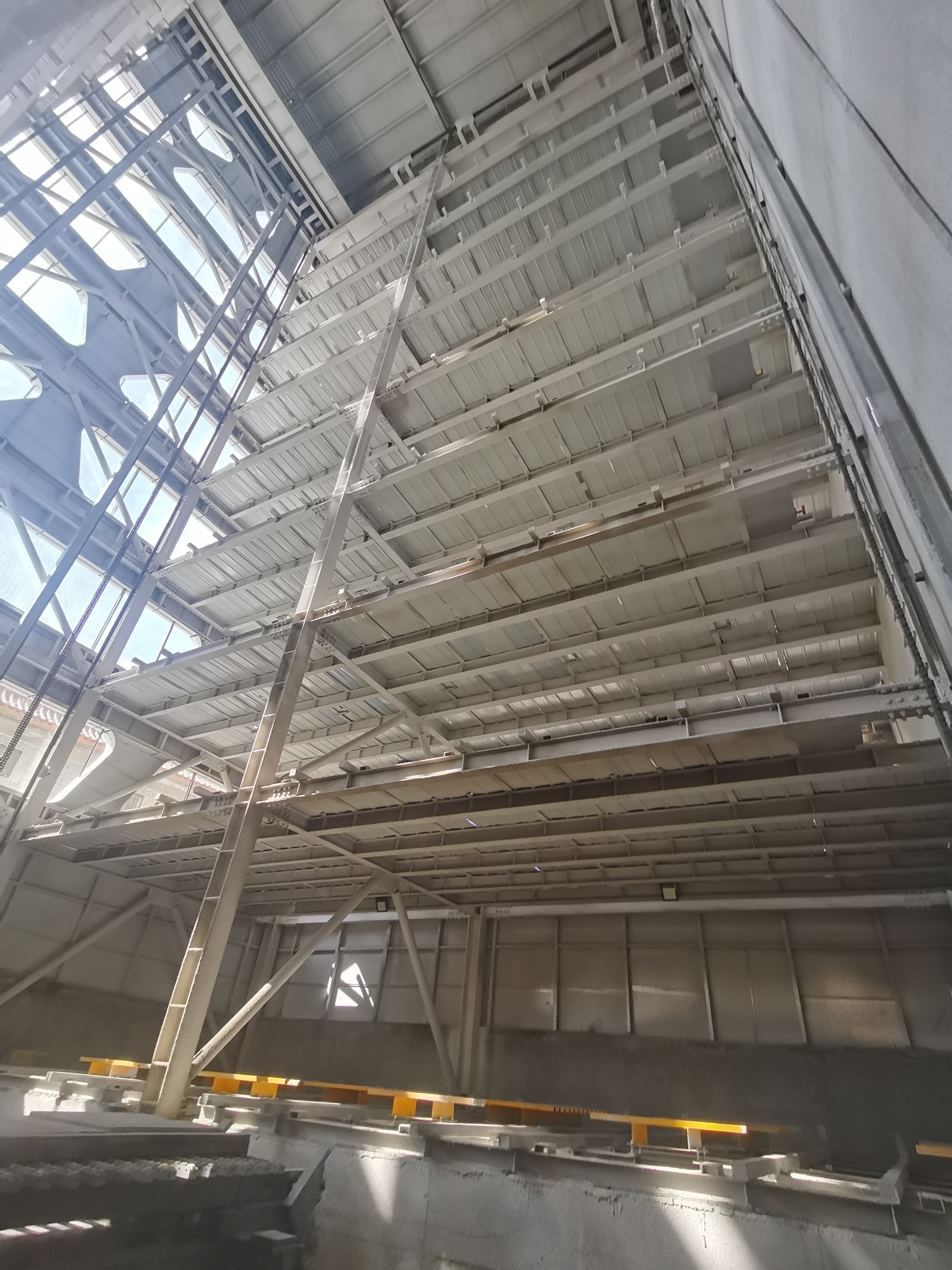

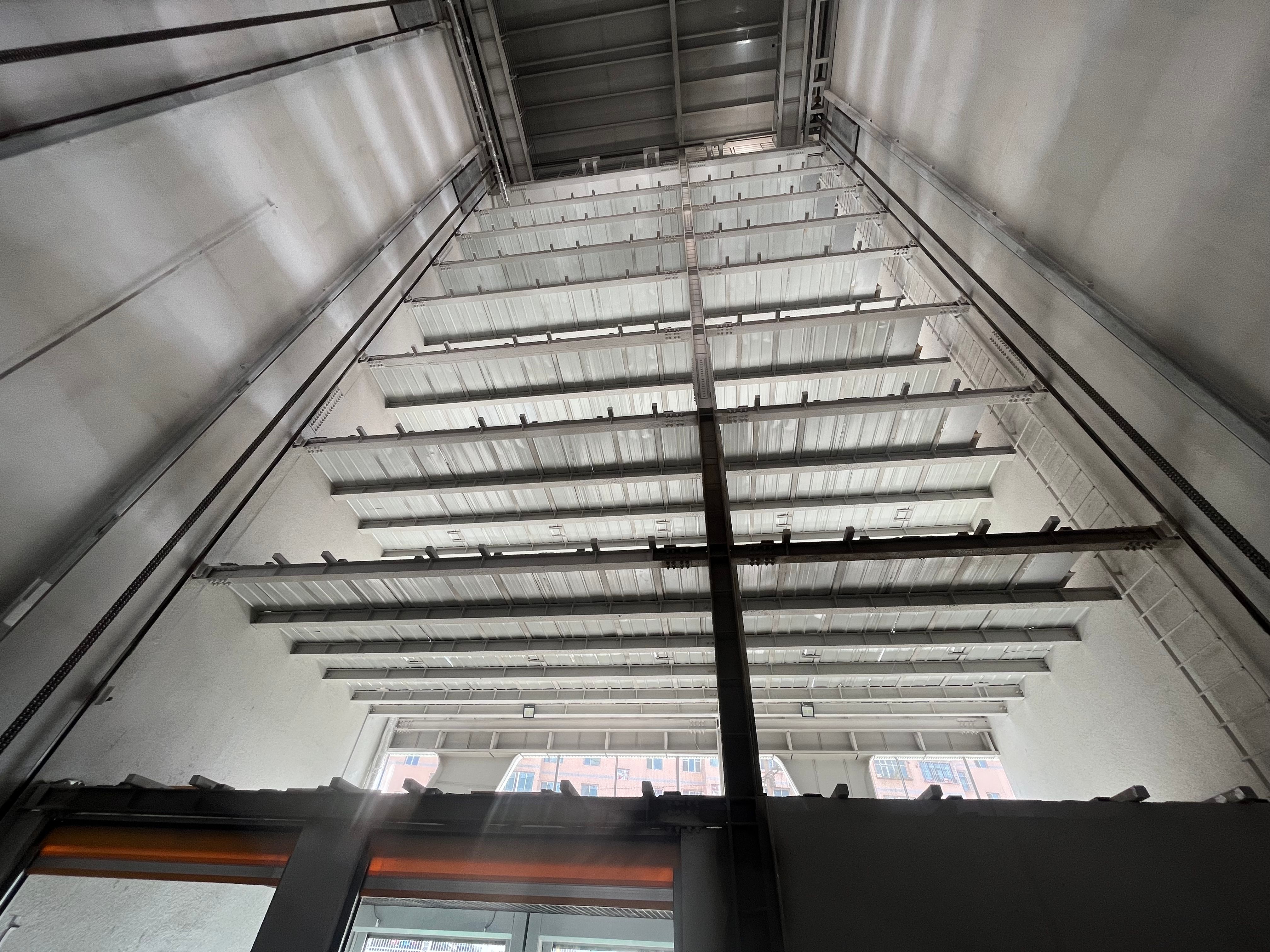

This 10-story vertical lift Tower parking system is a new type of Vertical Parking System. The working principle of the new vertical lifting Parking System: before the vehicle drives to the storage room, the automatic fast rolling shutter door is automatically opened by geomagnetic induction, and the vehicle continues to drive to the parking platform in the exchange area on the first floor. The staff walks out and confirms the parking on the touch screen integrated machine; the transporter runs from the transverse transfer trolley to the bottom of the parking lot, lifts the vehicle to the center and transports it back to the transverse transfer trolley, runs to the middle position of the lifting platform, the lifting platform rises, and the transverse transfer trolley rotates at the same time to turn the vehicle around. After arriving at the parking floor, the transporter runs, puts the vehicle on the empty comb parking rack and then returns to the transfer trolley, and the Car Lift platform descends to the original position to receive the next system instruction, and the vehicle retrieval action is reversed.
