Flat-plate moving automatic parking system

Basic Info

Model No.PPY

BrandFengye

Place Of OriginChina

Dimensions Of Cars5300mmx1950mmx2050mm

Drive ModeMotor-driven

Power Supply3 phase 5 line

Surface TreatmentHot dip galvanizing

Operating ModeSwipe card or Touch screen

Control MethodPLC

Load Capacity2000kg-2500kg

Additional Info

Productivity50000 parking spaces/year

TransportationOcean,Land

Place of OriginJiangsu,China

Supply Ability50000 parking spaces/year

CertificateISO9001/GBT33000

HS Code84289020

PortShangha,Tianjin,Lianyungang

Product Description

Flat-plate moving Automatic Parking system is an advanced and efficient parking solution in the modern era. It is a prime example of Automated Parking technology, which has revolutionized the traditional parking methods. This system utilizes a series of plates to move vehicles horizontally and vertically, enabling the storage and retrieval of cars in a highly organized and space-saving manner. With its intelligent control system, the Plate-type Planar Moving Mechanical Parking System can quickly and accurately park and retrieve vehicles, significantly reducing the time and effort required for parking. It is an ideal choice for urban areas with limited land resources, providing practical and convenient Parking solutions for both commercial and residential buildings.

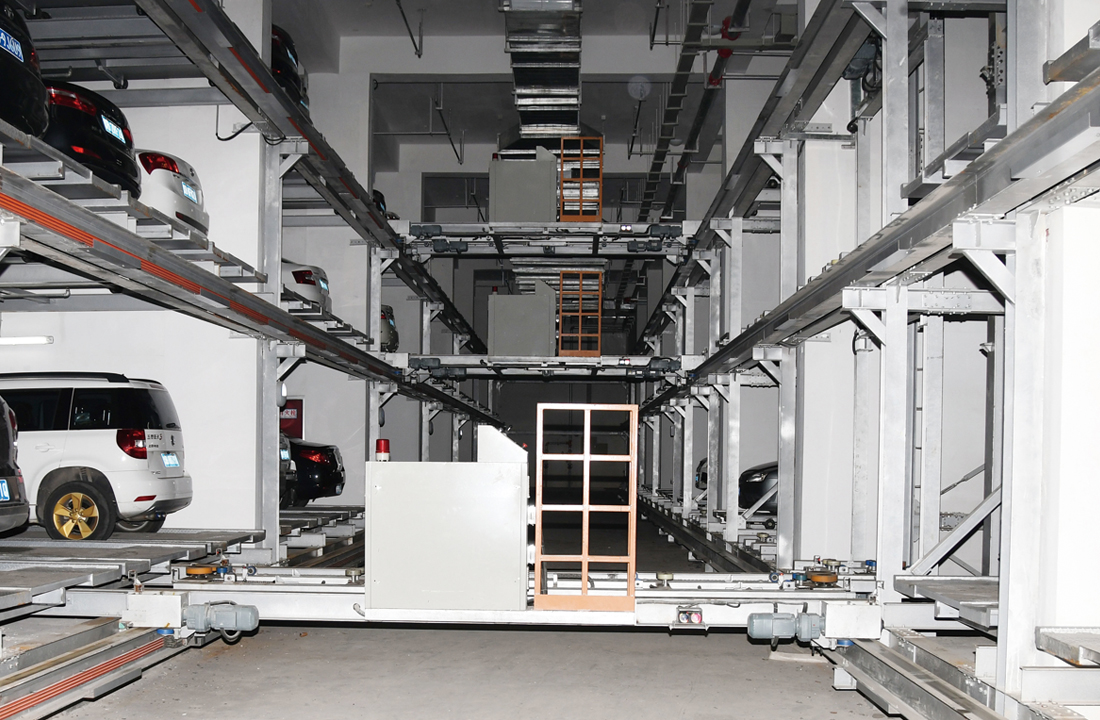

The operation principle of the Flat moving--Plate type

The main component of the mobile three-dimensional garage is the carrying plate, which is made of high-strength metal material, with load-bearing capacity and durability. These boards can be moved horizontally in the garage, either by electric motors or by hand.
When in use, the vehicle can be driven into the garage entrance and parked on a loading plate. Then, use the control panel or remote control to move the vehicle board to a suitable location in the garage. The garage can accommodate a plurality of vehicles by continuously moving a plurality of vehicle carrying plates.
Automated car parking system

 The technical parameters of the Flat moving--Plate type

Product name

Flat-plate moving automatic Parking System

Number of layers

11

Parking vehicle

Car/SUV

Speed

Up and down:30-90m/min

longitudinal shift:60-100m/min

Sidesway:5.5m/min

Turn around:3.5r/min

Driving mode

Motor and chain

Control system

PLC

Operation Mode

IC card,keystroke,and License plate recognition

Equipment Power Supply

AC380V/50HZ
