High Speed 9 Storey Flat Moving Parking System

Basic Info

Model No.: PPY-9

Brand: Fengye

Place Of Origin: China

Dimensions Of Cars: 5300mmx1950mmx2050mm

Drive Mode: Motor-driven

Power Supply: 3 phase 5 line

Surface Treatment: Hot dip galvanizing

Operating Mode: Swipe card or Touch screen

Control Method: PLC

Load Capacity: 2000kg-2500kg

Additional Info

Productivity: 50000 parking spaces/year

Transportation: Ocean,Land

Place of Origin: Jiangsu,China

Supply Ability: 50000 parking spaces/year

Certificate: ISO9001/GBT33000

HS Code: 84289020

Port: Shangha,Tianjin,Lianyungang

Product Description

The 9-layer plane mobile Automated Parking System is a kind of Smart parking equipment. Its operating principle is based on plane movement technology and automatic control logic. Through the coordinated operation of vehicle carriers, lifting systems, horizontal moving rails and other devices, efficient access to multi level parking spaces is achieved.

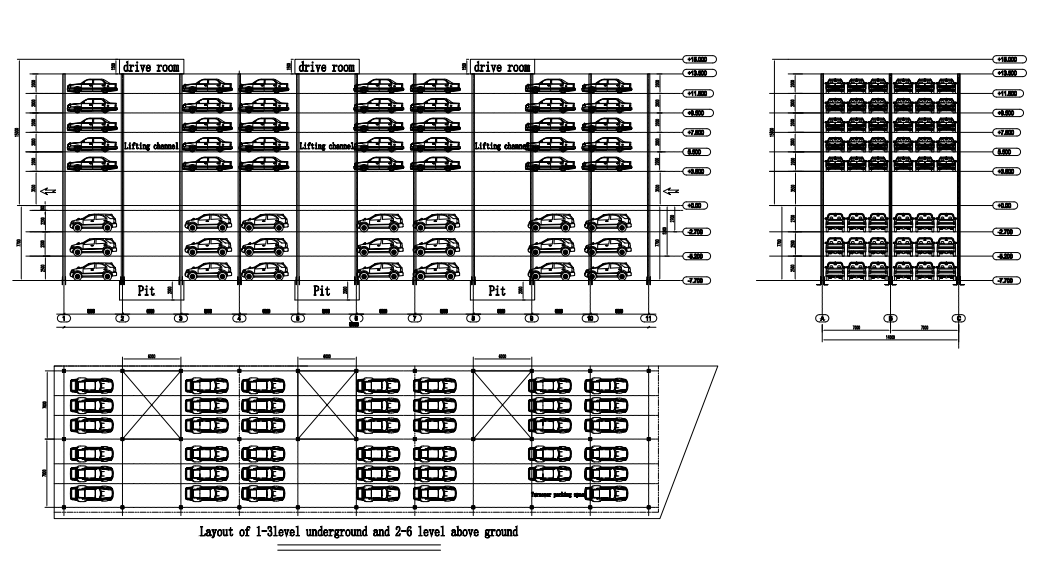

The Parking System mainly consists of the following parts 1. Lifting system: equipped with 1 or more vertical lifting shafts, used to quickly transport vehicles between different floors, similar to the principle of elevators. 2. Plane moving device: Each floor of the parking lot is equipped with a horizontally moving carrier (or "trolley"), which can move horizontally along the laid track and is responsible for transporting vehicles from the lifting shaft to the designated parking space, or from the parking space to the lifting shaft. 3. Parking space module: Each floor plane is divided into several fixed parking spaces, and the bottom of the parking space is equipped with a tray or guide rail that docks with the carrier to ensure accurate positioning of the vehicle. 4. Control system: The central control computer monitors the parking space status, vehicle location and equipment operation in real time through sensors, QR code recognition, RFID and other technologies to generate the optimal access path. Flat Moving Parking System
