Pitch-Type Simple Lifting Car Parking System

Basic Info

Model No.: PJS

Brand: Fengye

Place Of Origin: China

Dimensions Of Cars: 5300mmx1950mmx2050mm

Power Supply: 3 phase 5 line

Surface Treatment: Hot dip galvanizing

Operating Mode: Swipe card or Touch screen

Control Method: PLC

Load Capacity: 2000kg-2350kg

Drive Mode: Motor + chain

Additional Info

Productivity: 50000 parking spaces/year

Transportation: Ocean,Land

Place of Origin: Jiangsu,China

Supply Ability: 50000 parking spaces/year

Certificate: ISO9001/GBT33000

HS Code: 84289020

Port: Shanghai,Tianjin,Lianyungang

Product Description

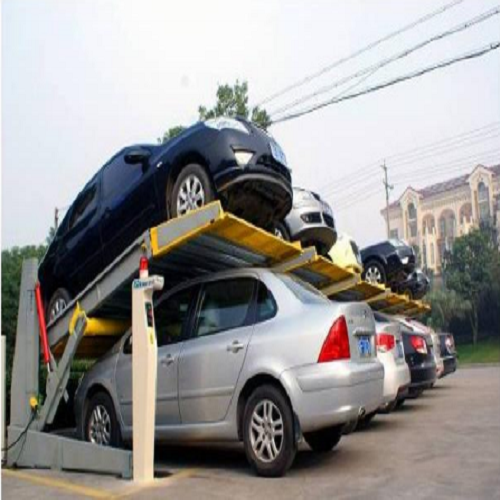

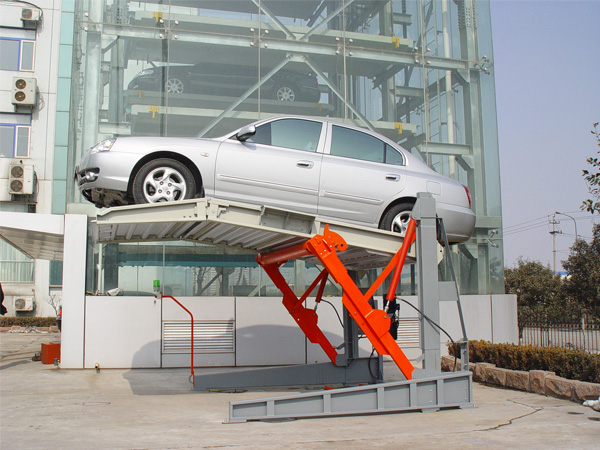

The pitch type simple lifting Mechanical Parking Garage is a type of parking lift garage, which adopts a fully steel frame structure and can be installed in outdoor, indoor or underground parking lots. The device has a compact structure and a beautiful and elegant appearance. The product is designed and produced in accordance with the relevant requirements of the "JB/T8909-1999 Simple Lift Mechanical Parking Equipment" standard, and multiple safety protection devices are installed in accordance with the relevant provisions of the "GB17907 General Safety Requirements for Mechanical Parking Equipment" standard.

This Parking System is mainly composed of steel structure, drive mechanism, loading plate, safety mechanism, electrical control, hydraulic pump station and other components.

The operating principle is as follows: if taking a car parked on the lower level, the driver can directly drive the car out; If it is to take out the car parked on the upper loading board, the car parked on the lower level must be taken out first, and then the car parked on the loading board must be lowered to the ground position through the control button, and then the car can be taken away. The process of storing a car is exactly the opposite of the process of retrieving it.
