4-post simple lifting mechanical parking system

Basic Info

Model No.: PJSL-2

Brand: Fengye

Place Of Origin: China

Dimensions Of Cars: 5300mmx1950mmx2050mm

Power Supply: 3 phase 5 line

Surface Treatment: Hot dip galvanizing

Operating Mode: Swipe card or Touch screen

Control Method: PLC

Load Capacity: 2000kg-2350kg

Drive Mode: Motor + chain

Additional Info

Productivity: 50000 parking spaces/year

Transportation: Ocean,Land

Place of Origin: Jiangsu,China

Supply Ability: 50000 parking spaces/year

Certificate: ISO9001/GBT33000

HS Code: 84289020

Port: Shanghai,Tianjin,Lianyungang

Product Description

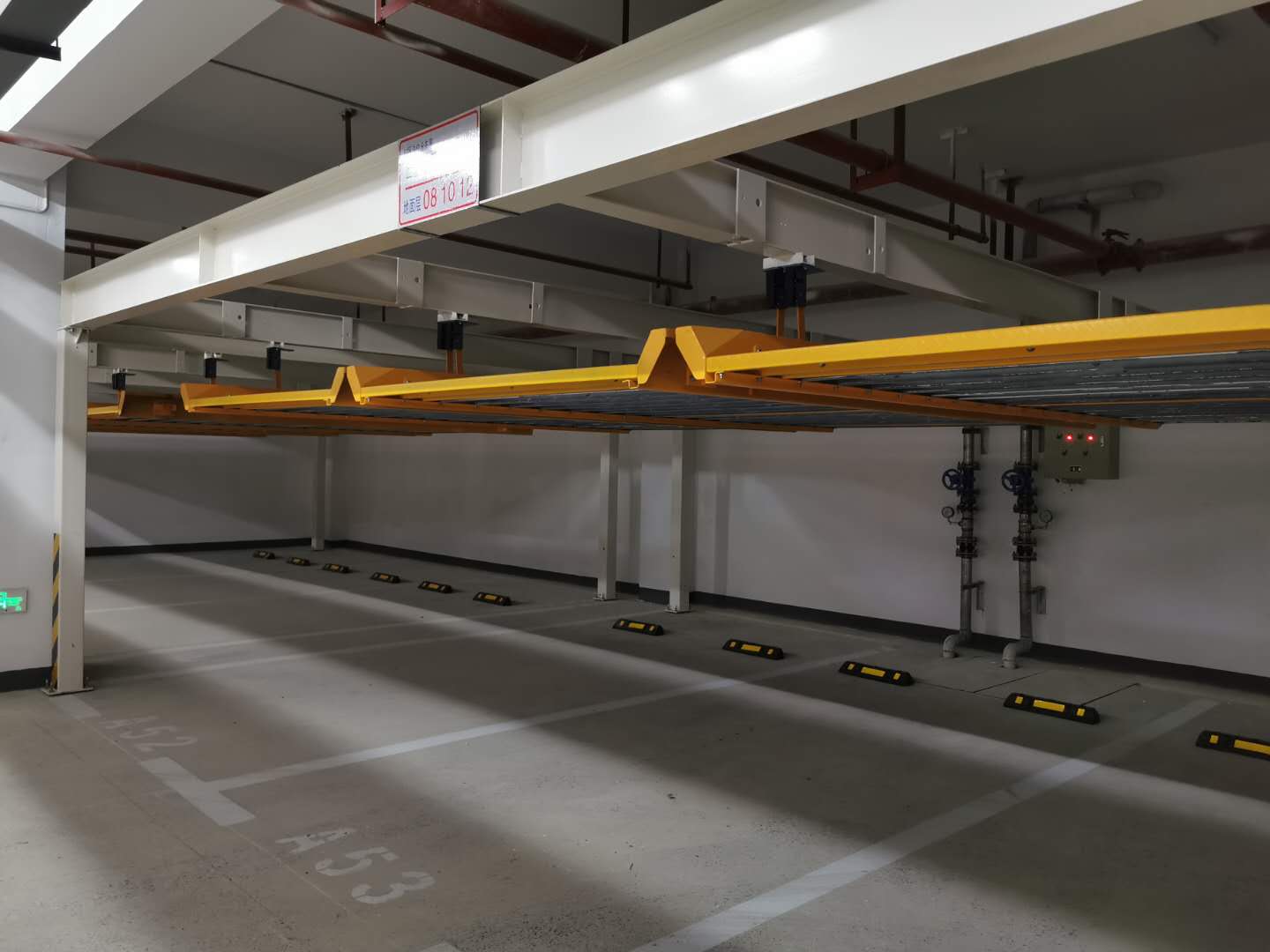

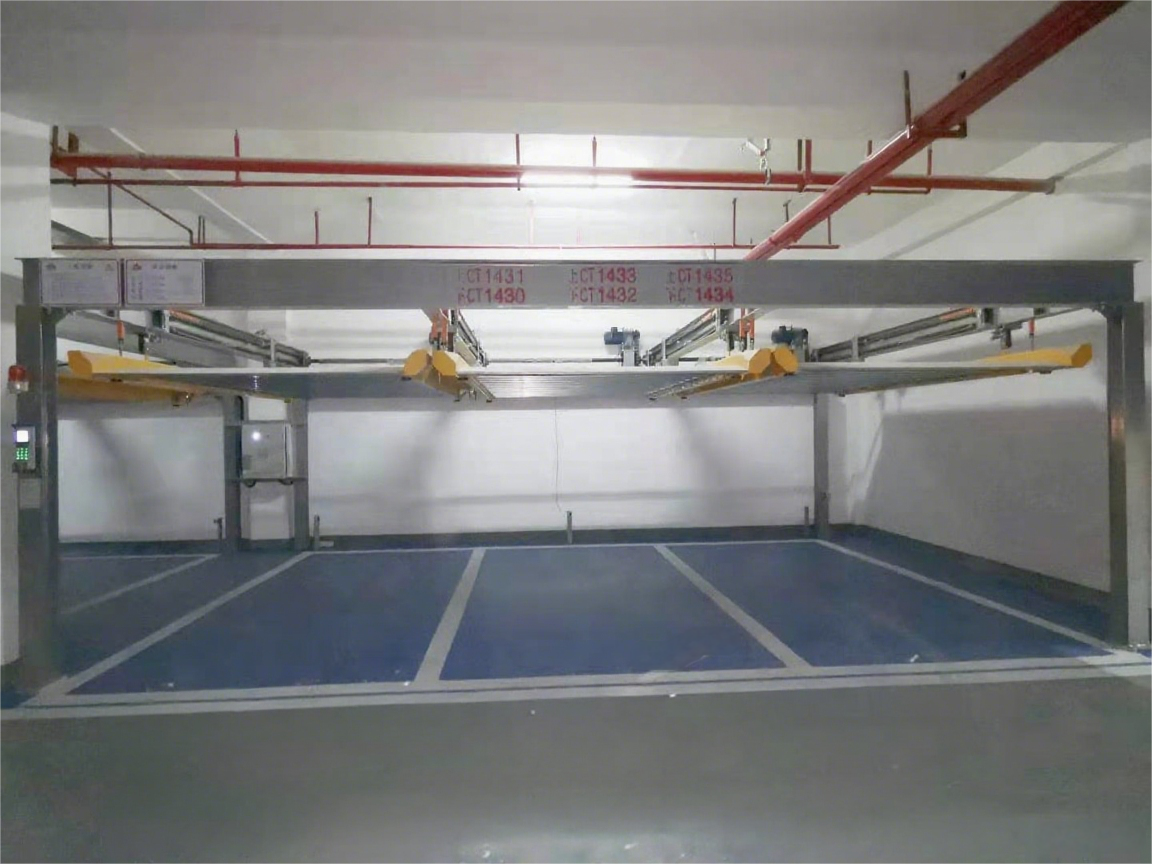

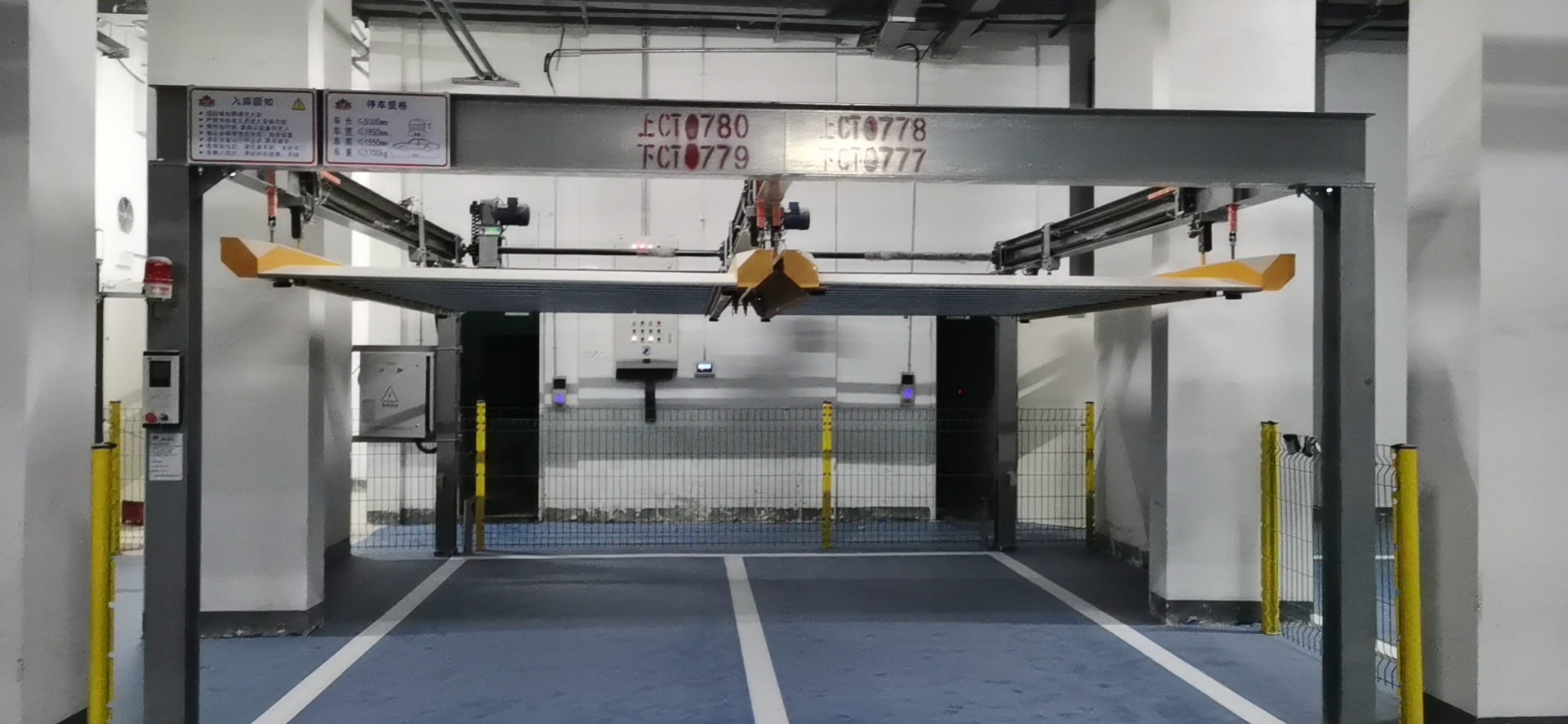

With the rapid development of my country's automobile industry, urban parking has become a common problem. Jiangsu Fengye Parking System Co., Ltd. has developed various types of Mechanical Parking Equipment in response to market demand, mainly used for parking large, medium and small cars and small vans. This garage is a combination of two-story Parking Lift, using a full steel frame structure. It can be set up in outdoor, indoor or underground parking lots. The equipment has a compact structure, beautiful shape, and multiple safety protection devices. The parking system is mainly composed of a frame, an upper platform, a lifting mechanism, a safety mechanism, an electrical control and other components.

The principle of parking and retrieving cars is as follows: if you are taking a car parked on the lower floor, the driver can drive the car out directly; if you are taking a car parked on the upper loading plate, you must first take out the car parked on the lower floor, and then use the control button to let the car parked on the loading plate drop to the ground position, and then take the car away. The parking process is exactly the opposite of the retrieval process. When picking up a car parked on the upper loading plate, the car parked on the ground floor must be driven out first and then the car picking procedure can be performed.
